elliptic oval
Major axis Minor axis
mm mm
12 6
13 7
14 7
15 8
16 8
18 8
20 8
20 10
25 10
25 15
28 15
30 10
30 15
30 20
38 13
39 26
40 20
45 25
50 25
60 40
64.5 43
70 30
70 45
103 80
115 85

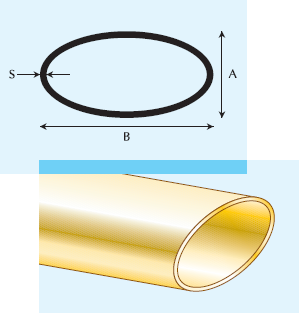

(B) Base from 12 to 115 mm
(A) Height from 6 to 85 mm
(S) Thickness from 1.0 to 2 mm

The elliptic oval tube is characterised by the elliptical section whose trait may vary according to the combinations in the above chart.
The greater axis indicates the external measurement of the greater diameter whereas the minor axis indicates the measurement of the minor diameter.


Our tubes are proposed in commercial length, approximately in a range between 4.500 mm 5.500 mm. However, they can be cut in a fixed length, e.g. bars of 5.000 mm, or proposed already cut to pieces in the required sizes, i.e. rings of 30 mm.
The packaging can be arranged on request in bundles protected by bubble wrap or in wooden crates.
To know the minimum producible quantity and to agree on the conditions of return please contact our offices.


To know what commercial measures are immediately availables see the warehouse catalog at our subsidiary Comet SpA warehouse

Brass CuZn37
Copper Cu-DHP
Copper Cu-ETP
Copper Cu-HCP
Copper Cu-PHC
Copper Cu-OF
Hard
Soft
Stress relieved
